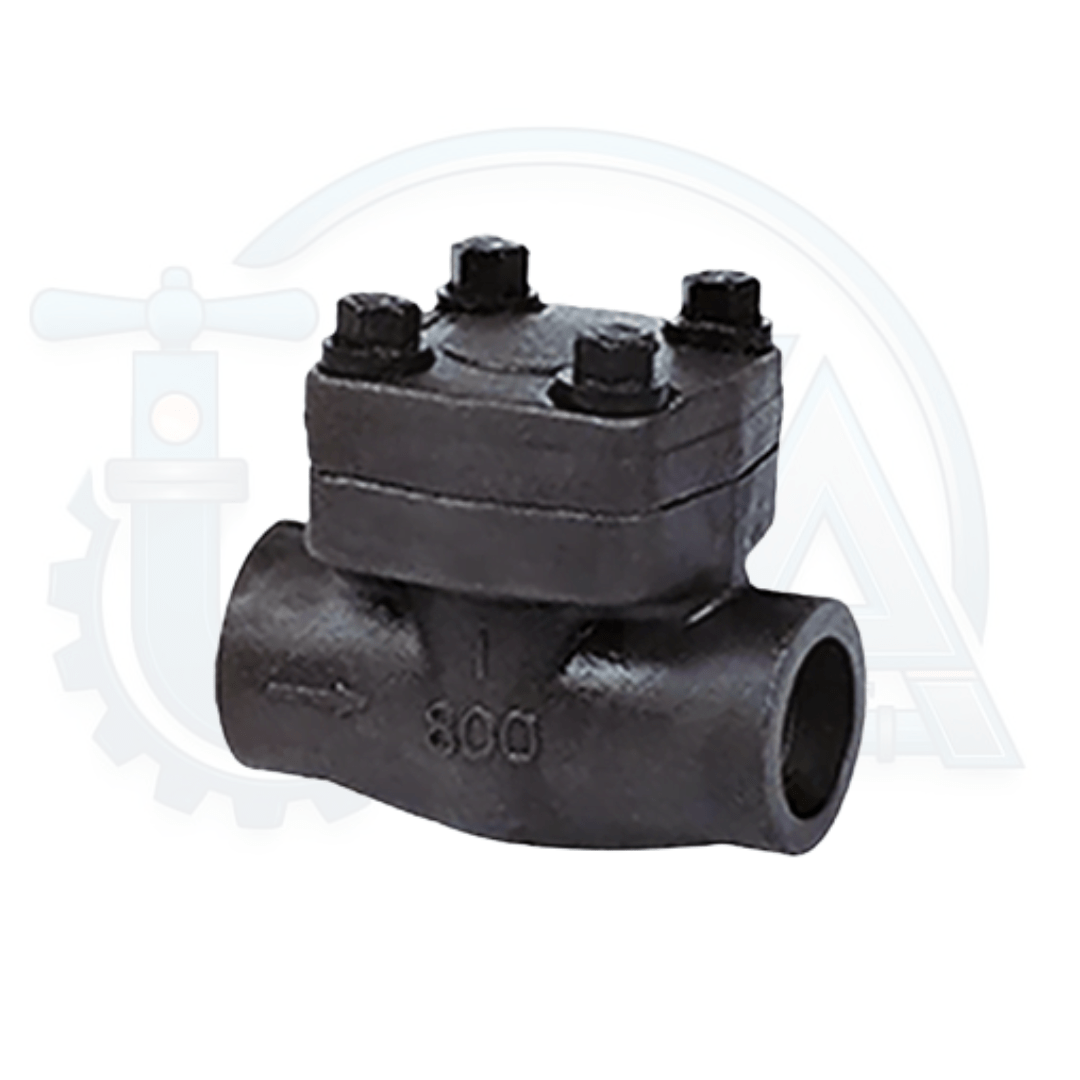

Forged Steel Check Valve Manufacturer in Mumbai
A forged steel check valve helps prevent reverse flow in industrial piping systems where the selected valve construction and materials meet the operating requirements.
Ultra Valves Automation Pvt. Ltd. offers forged check valve product options for industrial enquiries from Mumbai and across India. Review the construction materials, end connections and testing standards before choosing a valve for your project.
Forged Steel Check Valves for Industrial Piping Systems
A forged steel check valve is a non-return valve with a forged body construction. It is designed to allow fluid flow in one direction while restricting backflow.
Forged steel construction is commonly selected for suitable industrial services where material strength, pressure requirements and compact valve construction are important.
The supplied product specification includes forged carbon steel, forged stainless steel and alloy steel body and cover options.
Several trim materials, packing arrangements, gasket materials and end connections are also listed.
Product Highlights
- Forged steel body and cover construction
- ASTM A105 carbon steel option
- ASTM A182 F304/F304L stainless steel option
- ASTM A182 F316/F316L stainless steel option
- ASTM A182 F11/F22 alloy steel option
- Different trim material options
- Flanged, threaded, socket weld and butt weld ends
- API 602 / BS 5352 / ASME B16.34 design standards
- API 598 testing standard
- Manual / electric actuator operation listed
Key Features of Forged Steel Check Valves
The supplied construction options provide a starting point for selecting a valve for compatible industrial duties.
Forged Body Construction
Forged carbon steel, stainless steel and alloy steel options are listed for the body and cover.
Reverse Flow Restriction
Check valves are designed to permit forward flow while restricting flow in the opposite direction.
Multiple End Connections
Flanged, screwed, socket weld and butt weld end connections are included in the supplied specification.
Trim Material Options
Stainless steel and Stellited working-part options are listed for different duties.
Industrial Standards
API 602, BS 5352 and ASME B16.34 are listed as design standards, with API 598 for testing.
Material Compatibility
Body, trim, packing and gasket materials should be selected according to process conditions.
Forged Steel Check Valve Technical Specifications
Review the supplied construction materials, design standards, testing requirements and connection options.
| Component / Parameter | Technical Specification |
|---|---|
| Body & Cover |
ASTM A105 – Forged Carbon Steel ASTM A182 F304/F304L – Forged Stainless Steel ASTM A182 F316/F316L – Forged Stainless Steel ASTM A182 F11/F22 – Alloy Steel |
| Trims / Working Parts |
ASTM A276 T-410 (SS-410 – 13% Cr. Steel) ASTM A276 T-304/304L (SS-304 / SS-304L) ASTM A276 T-316/316L (SS-316 / SS-316L) Stellited – ST6 |
| Gland Packing | PTFE Virgin / Carbon Filled Teflon / Grafoil Ring / Graphite Ring |
| Gasket | SS304 / SS316 Spiral Wound with Graphite Filled |
| Bolting | ASTM A193 Gr. B7 / B8 / B8M / ASTM A194 Gr. 2H |
| Design Standard | API 602 / BS 5352 / ASME B16.34 |
| Testing Standard | API 598 |
| Flange End Standard | ASME B16.5 / Face to Face ASME B16.10 |
| End Connection |
Flanged End to ASME B16.5
(150# / 300# / 600# – Flanges Welded) Screwed / Threaded End to ASME B1.20.1 Socket Weld End to ASME B16.11 Butt Weld End to ASME B16.25 |
| Operation | Manual / Electric Actuator |
Technical note: These specifications reproduce the information supplied. Confirm model-specific pressure class, size range, closure mechanism, end connections and applicable standards before ordering. Conventional check valves are generally self-acting; the listed manual/electric actuator operation should be verified against the exact product design.
Forged Carbon Steel, Stainless Steel & Alloy Steel Options
The supplied body and cover options include ASTM A105 forged carbon steel, ASTM A182 F304/F304L, ASTM A182 F316/F316L and ASTM A182 F11/F22 alloy steel.
The appropriate material depends on the operating pressure, temperature, process fluid and corrosion requirements.
The listed trim materials include stainless steel grades and Stellited ST6 working parts. Packing and gasket arrangements must also be checked for compatibility.
Material Selection Checklist
- Process medium
- Operating temperature
- Operating pressure
- Corrosion requirements
- Body and cover material
- Trim and working-part materials
- Gasket compatibility
- Applicable design and testing standards
Forged Steel Check Valve End Connections
End connections should match the piping design, installation method and applicable project specifications.
Flanged Ends
Flanged ends are listed to ASME B16.5, with 150#, 300# and 600# options. Confirm the required flange arrangement.
Threaded Ends
Screwed or threaded ends are listed to ASME B1.20.1. Thread compatibility should be verified.
Welded Ends
Socket weld ends are listed to ASME B16.11, while butt weld ends are listed to ASME B16.25.
How Does a Forged Steel Check Valve Work?
A conventional forged steel check valve works automatically in response to flow direction and pressure differences.
Forward Flow
Sufficient forward pressure moves the closure element away from its seat, allowing fluid to pass.
Normal Operation
The closure element remains open while flow conditions provide the required opening force.
Reverse Flow
When forward flow decreases or reverses, the closure element moves toward the seat to restrict backflow.
Forged Steel Check Valve Supplier in Mumbai
Industrial plants, contractors and maintenance teams in Mumbai need check valves that match their process conditions and piping connections.
Ultra Valves Automation Pvt. Ltd. welcomes enquiries from buyers comparing forged steel check valve manufacturers in Mumbai.
If you are searching for a forged steel check valve supplier in Mumbai, share the required material, pressure class, end connection, process medium and quantity.
Discuss Your Requirement →Details Required for a Quote
- Required valve size
- Pressure class
- Operating temperature
- Process medium
- Body and cover material
- Trim material
- End connection
- Installation orientation
- Required standards
- Quantity and delivery location
Forged Steel Check Valve Supplier in India
Industrial buyers across India often require forged steel check valves for compatible process and utility piping applications.
When comparing forged steel check valve manufacturers in India, review the construction materials, pressure ratings, end connections, testing standards and product documentation.
Ultra Valves Automation Pvt. Ltd. welcomes product enquiries from Mumbai and across India. Buyers can review the supplied technical specifications and discuss the required configuration.
Selecting a forged steel check valve supplier in India involves confirming that the product matches the piping design and actual operating conditions.
Applications of Forged Steel Check Valves
Forged steel check valves may be considered for suitable industrial systems when the selected valve meets the required operating conditions.
Oil & Gas
Selected process and utility lines subject to material and pressure-rating requirements.
Power Plants
Compatible auxiliary and process piping applications.
Chemical Processing
Reverse flow restriction where materials suit the process fluid.
Steam & Utility Lines
Selected utility duties where temperature and pressure ratings are suitable.
Industrial Pumping
Compatible pump discharge applications requiring non-return valve arrangements.
Process Plants
General industrial piping applications requiring controlled flow direction.
How to Choose the Right Forged Steel Check Valve
Select the valve according to the process conditions, piping arrangement and applicable standards.
Confirm Operating Conditions
Review the process medium, pressure, temperature and flow conditions.
Select Materials & Connections
Choose compatible body, trim, gasket and end connection options.
Verify Technical Documentation
Confirm the selected valve's dimensions, pressure rating, testing requirements and installation instructions.
FAQs About Forged Steel Check Valves
Answers to common questions about construction, materials, operation and industrial applications.
What is a forged steel check valve?
A forged steel check valve is a non-return valve with a forged body construction. It allows flow in one direction while restricting reverse flow.
How does a forged check valve work?
Forward flow opens the valve's closure element. When flow decreases or reverses, the closure element returns toward the seat to restrict backflow.
What body and cover materials are listed?
The supplied specification lists ASTM A105, ASTM A182 F304/F304L, ASTM A182 F316/F316L and ASTM A182 F11/F22.
What end connections are available?
The supplied options include flanged, threaded, socket weld and butt weld end connections.
What design standards are listed?
API 602, BS 5352 and ASME B16.34 are listed as design standards, with API 598 listed for testing.
Are stainless steel forged check valves suitable for chemical applications?
Stainless steel forged check valves may be suitable for selected chemical duties, depending on material grade, process medium, pressure and temperature.
Are forged steel check valves suitable for steam lines?
Certain forged steel check valve configurations may suit steam service when the selected valve has the required pressure-temperature rating and materials.
Are forged steel check valves manually operated?
Conventional check valves are normally self-acting and respond to flow and pressure differences. Although manual and electric actuator operation appears in the supplied specification, it should be verified for the exact product model.
How do I choose forged steel check valve manufacturers in Mumbai?
Compare material specifications, pressure ratings, end connections, applicable standards and technical documentation before selecting a supplier.
Can I enquire about forged steel check valves across India?
Yes. Ultra Valves Automation Pvt. Ltd. welcomes industrial product enquiries from Mumbai and across India. Share your technical specifications, quantity and delivery location.
Need a Forged Steel Check Valve Quote?
Share your valve specifications with Ultra Valves Automation Pvt. Ltd. for product enquiries.
