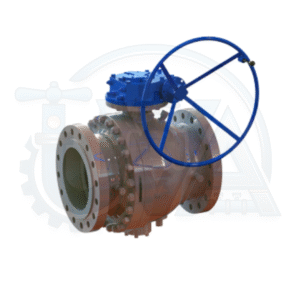

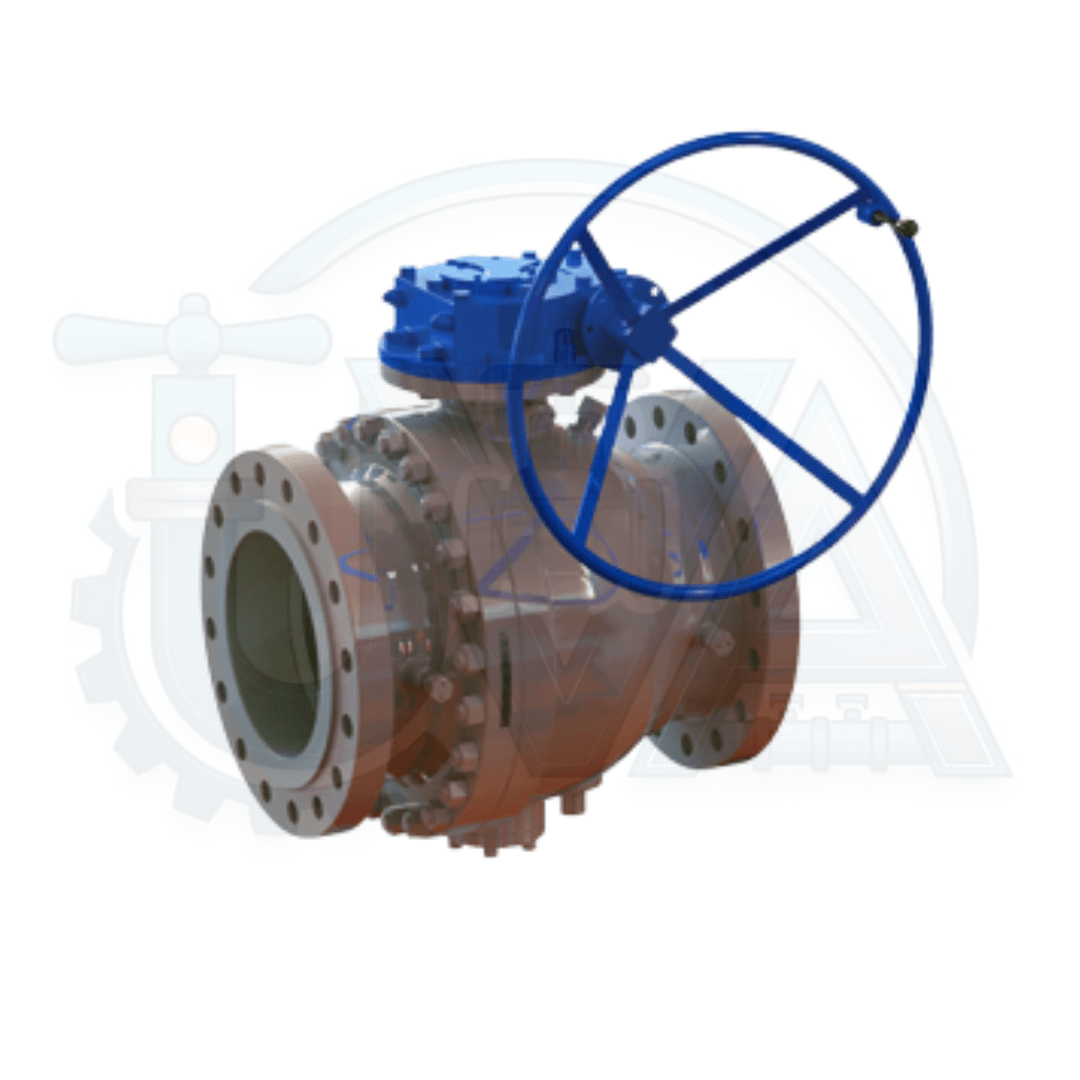

Trunnion Mounted Ball Valve Manufacturers in Mumbai
For industrial pipelines where valve stability, reliable isolation and controlled operating torque matter, a trunnion mounted ball valve can be an important part of the flow control system.
Ultra Valves Automation Pvt. Ltd. welcomes enquiries for trunnion mounted ball valves from industrial buyers in Mumbai and across India. Explore the valve construction, working principle, material options and technical specifications below.
Trunnion Mounted Ball Valves for Industrial Flow Control
A trunnion mounted ball valve uses mechanical supports to hold the ball in position while it rotates between open and closed states. Unlike a floating ball design, the ball is supported so that it does not move freely against the downstream seat under line pressure.
In a typical trunnion mounted ball valve design, the seat arrangement moves towards the ball to establish sealing contact. This construction is often considered for larger valve sizes and demanding pressure conditions, subject to the actual valve design and rating.
Whether you're comparing trunnion mounted ball valve manufacturers or reviewing a mounted ball valve for an industrial project, the important starting points are the pressure class, body material, seat design, valve size and operating conditions.
Product Highlights
- Trunnion-supported ball arrangement
- Quarter-turn opening and closing
- Two-piece body design listed in supplied specifications
- Cast iron, carbon steel and stainless steel material options
- PTFE / PFA seat material options
- Sizes from 15 NB to 200 NB as supplied
- ANSI Class 150 / PN10 / PN16 pressure class options
- Handle, gear, electric and pneumatic operation options
- Flanged connection options
Key Features of Trunnion Mounted Ball Valves
Understanding the construction and operating characteristics helps buyers select a suitable valve for their pipeline.
Trunnion-Supported Ball
Mechanical support helps hold the ball in position during operation, reducing the load transferred to the seats compared with a floating ball arrangement.
Quarter-Turn Operation
A 90-degree rotation moves the ball between fully open and closed positions for pipeline isolation.
Two-Piece Body Option
A 2 piece trunnion mounted ball valve can use a two-section body construction. The exact assembly and maintenance arrangement depends on the model.
Stainless Steel Options
Stainless steel material grades are listed among the supplied body, ball and stem options for suitable applications.
Seat Material Options
PTFE and PFA seating options are listed. The selected material must be compatible with the operating conditions.
Manual & Actuated Operation
Handle, gear, electric and pneumatic operation options allow buyers to discuss different control arrangements.
Trunnion Mounted Ball Valve Technical Specifications
The following material grades and configuration details are reproduced from the supplied product specification.
| Component / Specification | Product Details |
|---|---|
| Body / Connector | CI IS210 GR FG220 / CS ASTM A216 Gr. WCB / ASTM A351 CF8 / ASTM A351 CF8M + PFA / FEP Liner |
| Ball | ASTM A351 CF8 / CF8M |
| Seat | PTFE / PFA |
| Stem | 410 / 304 / 316 |
| Gland Packing / Gland Bush | PTFE |
| Gland Bolts | SS304 / C.S. / High Tensile |
| Sizes | ½″ (15 NB) to 8″ (200 NB) |
| Pressure Class | ANSI Class 150 / PN10 / PN16 |
| Valve Body Design | ASME B16.34 – 2 Piece Design |
| Flanged Drilled | Flange ASME B16.5 Class 150 RF / DIN Standard / PN10 / PN16 / PN40 |
| Operation | Handle / Gear Operation / Electric or Pneumatic Operation |
Technical note: The above details were supplied for this page and require verification against the actual trunnion mounted ball valve datasheet. In particular, confirm the trunnion support construction, PFA/FEP lining applicability, pressure ratings, valve sizes and body design. PN40 flange drilling does not establish a PN40 valve pressure rating.
How Does a Trunnion Mounted Ball Valve Work?
The key difference is the supported ball construction and the way the seats establish sealing contact.
Open Position
The bore through the ball aligns with the pipeline, allowing the process fluid to flow through the valve.
Quarter-Turn Closing
Rotating the stem by 90 degrees moves the solid surface of the ball across the flow passage to stop flow.
Seat Sealing
The trunnion support holds the ball in position. Depending on the design, the seats are urged towards the ball to establish sealing contact.
A trunnion mounted ball valve is commonly selected for on-off isolation. Pressure rating, seat construction, operating torque and material compatibility must be confirmed for the intended process.
2 Piece Trunnion Mounted Ball Valve Design
A 2 piece trunnion mounted ball valve has a body assembled from two main sections. The arrangement of the body joint, supports, seats and sealing components depends on the manufacturer and model.
The trunnion mounted ball is mechanically supported rather than relying on line pressure to move the entire ball against the downstream seat.
Buyers evaluating a customized trunnion mounted ball valve should confirm the required body construction, seat arrangement, pressure class, materials, flange connections and actuator requirements.
Important Design Considerations
- Two-piece body construction
- Ball support and bearing arrangement
- Seat design and sealing direction
- Body and trim material selection
- Pressure and temperature ratings
- End connection dimensions
- Manual or actuated operation
- Applicable testing requirements
- Maintenance and installation access
Stainless Steel Trunnion Ball Valve Options
A stainless steel trunnion ball valve may be considered where the process requires suitable corrosion resistance and material compatibility. However, stainless steel grades are not interchangeable for every chemical or operating condition.
The supplied specifications include ASTM A351 CF8 and CF8M for the ball, with 410, 304 and 316 stem material options. Stainless steel body grades are also listed.
Before selecting a stainless steel configuration, review the process fluid, temperature, pressure, required corrosion resistance and the applicable valve design.
Trunnion Mounted Ball Valve Supplier in Mumbai
Industrial buyers in Mumbai often need valves that match detailed piping specifications. Choosing a trunnion mounted ball valve involves more than selecting a nominal size or pressure class.
Ultra Valves Automation Pvt. Ltd. welcomes enquiries from businesses comparing trunnion mounted ball valve manufacturers in Mumbai for industrial pipeline applications.
If you're searching for a trunnion mounted ball valve supplier in Mumbai, share the required valve size, body material, pressure rating, operating conditions and quantity with our team.
Discuss Your Requirement →What to Include in Your Enquiry
- Valve size and required quantity
- Pressure class and design temperature
- Process fluid and operating conditions
- Body, ball and stem materials
- Seat design and material preference
- Two-piece or other required construction
- Flange drilling and end connections
- Manual, gear or actuator operation
- Project delivery location
Trunnion Mounted Ball Valve Supplier in India
Industrial projects across India require isolation valves selected according to their operating conditions, material requirements and piping standards. Trunnion mounted ball valves are commonly considered where a supported ball construction offers advantages for the application.
When comparing trunnion mounted ball valve manufacturers in India, buyers should review the valve design, seat construction, pressure class, material grades, testing requirements and actuator compatibility.
Ultra Valves Automation Pvt. Ltd. welcomes enquiries from industrial customers looking for a trunnion mounted ball valve supplier in India. Our team can be contacted with the required specifications to discuss product configuration and enquiry requirements.
For a customized trunnion mounted ball valve enquiry, provide the complete project datasheet wherever possible. This helps clarify the construction, materials, dimensions and operating arrangement needed for your application.
Applications of Trunnion Mounted Ball Valves
Trunnion mounted ball valves can be considered for suitable isolation duties in different industrial sectors. Final suitability depends on the selected model.
Oil & Gas
Pipeline isolation where supported ball construction, pressure ratings and material selection are important.
Petrochemical Plants
Process isolation applications requiring careful selection of body materials and sealing arrangements.
Power Generation
Selected auxiliary and utility pipeline applications within the valve's design limits.
Chemical Processing
Isolation duties where process compatibility and seat materials must be verified.
Water Infrastructure
Compatible water handling and pipeline isolation applications.
Industrial Process Plants
On-off flow control applications requiring suitable valve construction and operating arrangements.
How to Choose a Trunnion Mounted Ball Valve
Before requesting a quotation, review the main technical requirements of your pipeline and process.
Confirm Pressure & Temperature
Check the operating pressure, design pressure and temperature. Confirm that the selected valve rating is suitable.
Review Materials & Sealing
Evaluate body, ball, stem and seat materials against the process fluid and operating conditions.
Check Construction & Operation
Confirm the required body design, trunnion support arrangement, end connections and operating method.
FAQs About Trunnion Mounted Ball Valves
Answers to common questions about valve design, materials, operation and industrial product enquiries.
What is a trunnion mounted ball valve?
A trunnion mounted ball valve is a quarter-turn isolation valve in which the ball is supported by a mechanical trunnion arrangement. The supported ball rotates to open or close the flow passage.
How does a trunnion mounted ball valve work?
The ball rotates by 90 degrees between open and closed positions. Mechanical supports hold the ball in position while the seat arrangement provides sealing contact.
What is a 2 piece trunnion mounted ball valve?
A two-piece design uses two main body sections assembled together. The exact support, seat and maintenance arrangement depends on the valve model.
What is the difference between a floating ball valve and a trunnion mounted ball valve?
A floating ball valve allows limited movement of the ball under line pressure. A trunnion mounted valve mechanically supports the ball and typically uses movable seat arrangements to establish sealing.
Are stainless steel trunnion ball valves available?
Stainless steel material options are included in the supplied specifications. The exact body, ball and stem combination should be confirmed for the required valve model.
Can a trunnion mounted ball valve be customized?
Custom configuration requirements can be discussed by providing a detailed datasheet. Feasibility depends on the required size, materials, pressure class and design.
Are electric and pneumatic operation options available?
Electric and pneumatic operation are listed among the supplied operating options, along with handle and gear operation. Confirm actuator compatibility for the selected model.
What sizes are listed in the supplied specifications?
The supplied specification lists sizes from ½ inch (15 NB) to 8 inches (200 NB). This range should be verified against the actual trunnion mounted valve datasheet.
Where can I enquire about trunnion mounted ball valve suppliers in Mumbai?
Contact Ultra Valves Automation Pvt. Ltd. on +91 93218 37706 or email ultravalvesautomation@gmail.com with your required specifications and quantity.
Can I enquire about trunnion mounted ball valves for projects across India?
Yes. Ultra Valves Automation Pvt. Ltd. welcomes industrial product enquiries from customers across India. Share the project requirements and delivery location to discuss feasibility.
What information is needed for a trunnion mounted ball valve quotation?
Provide the valve size, quantity, pressure class, operating temperature, process medium, body material, seat design, end connections and required operation type.
Need a Trunnion Mounted Ball Valve Quote?
Share your required valve size, pressure class, materials and quantity with Ultra Valves Automation Pvt. Ltd.
