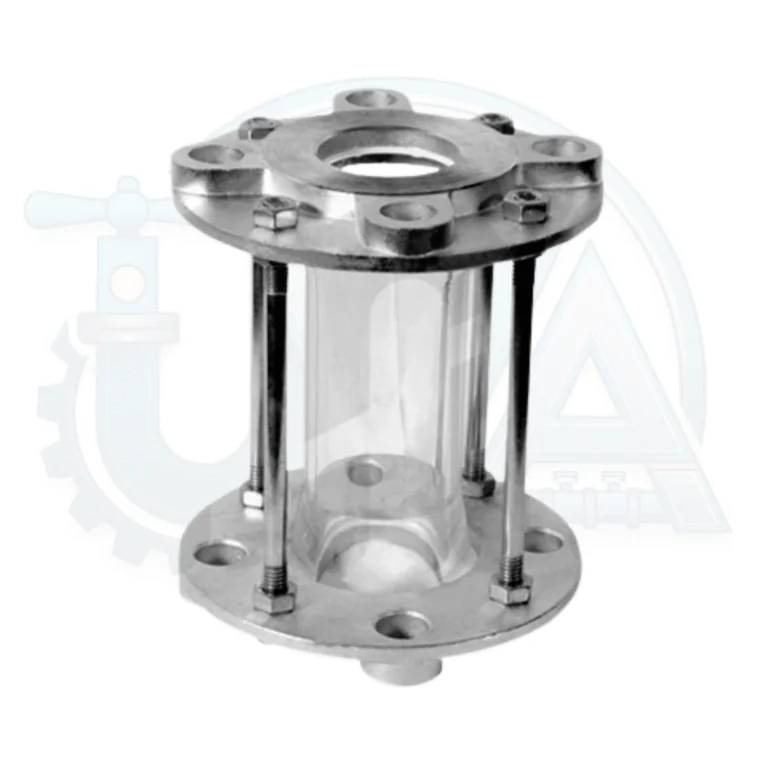

Full View Sight Glass
A full view sight glass provides a transparent viewing section for observing flow conditions in suitable process lines.
View Specifications →
ULTRA VALVES AUTOMATION PVT. LTD.
Industrial Pipeline Flow Observation
Window Sight Glass Manufacturers & Suppliers in Mumbai, India
Window sight glass assemblies allow operators to visually observe flow conditions inside suitable industrial pipelines. They can help identify whether fluid is present, whether flow appears continuous, and whether visible bubbles or particles are moving through the line.
Ultra Valves Automation Pvt. Ltd. welcomes enquiries for Full View Sight Glass, Full View Sight Glass with Tri-Clover Connection, and Double Window Sight Glass from industrial buyers in Mumbai and across India.
Industrial Window Sight Glass
Product Overview
Industrial Window Sight Glass for Visual Flow Monitoring
A window sight glass provides a viewing area through which operators can inspect conditions inside a closed pipeline without opening the system.
Depending on its design, the assembly may provide a full-view section or separate viewing windows. The choice depends on the process medium, installation arrangement and required visibility.
Some buyers search for this equipment using the shortened term window sight. The important factors are the correct construction, suitable viewing element and verified pressure- temperature rating.
A double window sight glass is particularly useful where the pipeline arrangement calls for opposed viewing windows rather than a full cylindrical viewing section.
Product Range
- Full View Sight Glass
- Full View Sight Glass with Tri-Clover Connection
- Double Window Sight Glass
- ½″ to 16″ listed size range
- CI / WCB / CF8 / CF8M / MS options
- PP / HDPE / PVC options
- PFA / PTFE lined options
- Various flange and threaded connections
- Application-dependent pressure and temperature limits
Explore Our Product Range
Types of Window Sight Glass
Explore the three supplied product configurations and review their technical information.

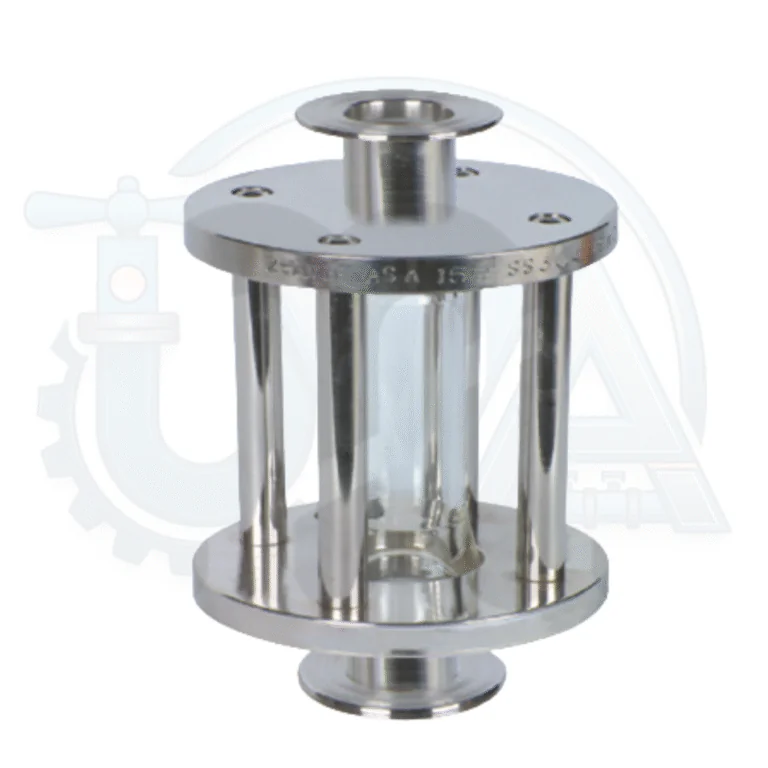

Full View Sight Glass with Tri-Clover Connection
A full view arrangement intended for applications using a compatible sanitary clamp-style connection. Exact connection details should be confirmed.
View Specifications →
Double Window Sight Glass
A double window sight glass uses viewing windows to provide visual access to process flow conditions.
View Specifications →
Technical Specifications
Window Sight Glass Technical Details
The following specifications are based on the supplied product information. Final selection must be confirmed against the approved datasheet.
Full View Sight Glass
Industrial pipeline viewing assembly.
| Parameter | Specification |
|---|---|
| Product Type | Full View Sight Glass |
| Size Range | ½″ to 16″ |
| Wetted Part Materials | CI / WCB / CF8 / CF8M / MS / PP / HDPE / PVC / PFA Lined / PTFE Lined |
| End Connections | Flanged to ASA / ABS / DIN / JIS; Screwed BSP / NPT |
| Design Temperature | Up to 200°C, depending on type |
| Design Pressure | Up to 20 kg/cm², depending on type |
Full View Sight Glass with Tri-Clover Connection
Full-view configuration for compatible clamp-style piping.
| Parameter | Specification |
|---|---|
| Product Type | Full View Sight Glass with Tri-Clover Connection |
| Size Range | ½″ to 16″ |
| Wetted Part Materials | CI / WCB / CF8 / CF8M / MS / PP / HDPE / PVC / PFA Lined / PTFE Lined |
| End Connections | Tri-Clover style connection referenced in product name; supplied general connection list: ASA / ABS / DIN / JIS flanged, BSP / NPT screwed. Confirm actual clamp connection availability. |
| Design Temperature | Up to 200°C, depending on type |
| Design Pressure | Up to 20 kg/cm², depending on type |

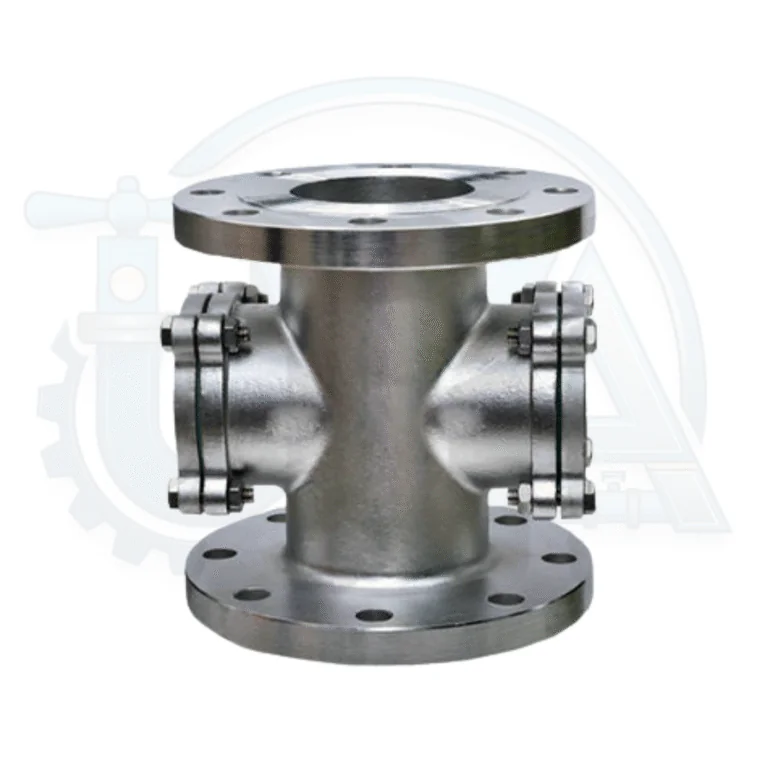

Double Window Sight Glass for Pipeline Flow Monitoring
Viewing-window configuration for suitable process lines.
| Parameter | Specification |
|---|---|
| Product Type | Double Window Sight Glass |
| Size Range | ½″ to 16″ |
| Wetted Part Materials | CI / WCB / CF8 / CF8M / MS / PP / HDPE / PVC / PFA Lined / PTFE Lined |
| End Connections | Flanged to ASA / ABS / DIN / JIS; Screwed BSP / NPT |
| Design Temperature | Up to 200°C, depending on type |
| Design Pressure | Up to 20 kg/cm², depending on type |
Important: The temperature and pressure values above are stated maximums dependent on product type and materials. They are not simultaneous ratings for every configuration. Confirm viewing-glass material, gasket compatibility, connection standard and the manufacturer's approved pressure-temperature ratings before installation.
Double Window Configuration
Double Window Sight Glass Flow Indicator
A double window type sight glass provides two viewing windows through which operators can inspect conditions in the process line.
Industrial buyers may describe this arrangement as a double window sight flow indicator or double window sight glass flow indicator.
It can provide a useful visual indication of fluid movement, depending on the transparency and operating conditions of the medium.
A sight glass is not automatically a calibrated flow meter. It should not be used to determine accurate flow rate unless a specific measurement design supports that function.
Selection Considerations
- Required viewing arrangement
- Pipeline size
- Process medium
- Operating pressure
- Operating temperature
- Wetted-part material
- Viewing-glass material
- Gasket and seal compatibility
- Connection standard
- Maintenance and inspection access
Working Principle
How Does a Window Sight Glass Work?
Sight glass assemblies provide visual access to the process medium while keeping it contained within the specified pressure boundary.
01
Process Medium Enters
Fluid passes through the sight glass assembly as part of the pipeline system.
02
Flow Becomes Visible
The transparent viewing section or windows allow operators to observe visible conditions.
03
Operators Inspect
Visual inspection may help identify flow presence, bubbles or other observable changes.
Product Features
Features of Industrial Window Sight Glass
Visual Observation
Allows operators to inspect visible process conditions through the viewing element.
Multiple Designs
Full-view and double-window configurations support different viewing requirements.
Material Options
Metallic, polymeric and lined wetted-part materials are listed in the supplied data.
Connection Choices
Flanged and threaded connections are listed, with Tri-Clover referenced for one product variant.
Pipeline Integration
Intended for installation in compatible process lines where visual inspection is useful.
Application-Based Selection
Pressure, temperature, medium and glass compatibility guide the final selection.
Industrial Applications
Applications of Window Sight Glass
Sight glass assemblies are considered where operators need visual access to process conditions in a closed system.
Chemical Processing
Observing suitable process fluids where materials are compatible.
Pharmaceutical Processing
Selected applications where viewing, cleanability and hygienic requirements are satisfied.
Food & Beverage
Suitable process observation duties, subject to hygienic design requirements.
Water Treatment
Visual inspection of compatible water process lines.
Industrial Utilities
Observing fluid presence or visible movement in selected utility systems.
Process Manufacturing
Pipeline viewing requirements in suitable industrial manufacturing processes.
Understanding Product Terminology
Window Sight Glass and Flow Indicator Options
A double window sight glass manufacturer enquiry should include the required viewing arrangement, operating conditions and connection details.
The term threaded sight glass window may describe a threaded connection or a threaded viewing assembly. These are not necessarily the same product. Confirm the drawing before ordering.
For double window sight glass applications, it is important to verify the viewing-glass material, seal compatibility, pressure rating and maintenance access.
Industrial buyers comparing window sight glass suppliers should request product-specific technical details rather than selecting on appearance alone.
Mumbai Industrial Enquiries
Window Sight Glass Manufacturers in Mumbai
Engineering contractors, industrial plants and maintenance teams in Mumbai often require sight glass assemblies for pipeline flow observation.
Buyers researching window sight glass Manufacturers in Mumbai should compare viewing configurations, wetted-part materials, connection standards and approved ratings.
When evaluating window sight glass suppliers in Mumbai, ask for technical drawings, pressure- temperature limits and material details.
Ultra Valves Automation Pvt. Ltd. welcomes enquiries for Full View, Tri-Clover Connection and Double Window Sight Glass products from Mumbai.
Call +91 93218 37706
Industrial Enquiries Across India
Window Sight Glass Suppliers in India
Window sight glass assemblies are used in selected industrial piping systems where operators need visual process observation.
Buyers comparing window sight glass Manufacturers in India should evaluate product construction, viewing-element material, gasket compatibility and approved operating limits.
When reviewing window sight glass suppliers in India, confirm the required size, end connection, process medium, pressure and temperature.
Ultra Valves Automation Pvt. Ltd. welcomes industrial sight glass enquiries from buyers across India.
Selection Guide
How to Choose the Right Window Sight Glass
01
Select the Viewing Type
Choose between a full-view arrangement and double viewing windows based on the required visibility.
02
Check Process Conditions
Confirm operating pressure, temperature and the properties of the process medium.
03
Verify Material Compatibility
Review wetted-part, viewing-glass and sealing materials for compatibility.
04
Confirm Connections
Specify the flange, thread or clamp-style connection and request the approved product drawing.
Frequently Asked Questions
FAQs About Window Sight Glass
What is a window sight glass?
A window sight glass is a viewing assembly used to observe visible process conditions inside a closed pipeline or system.
What is a full view sight glass?
A full view sight glass provides a transparent viewing section through which process conditions can be observed.
What is a double window sight glass?
A double window sight glass uses two viewing windows to provide visual access to the process medium.
Does a double window sight flow indicator measure flow rate?
Not necessarily. A standard sight glass provides visual observation. Accurate flow measurement requires a suitable calibrated instrument.
What sizes are listed for these sight glass products?
The supplied size range is ½ inch to 16 inches, depending on the selected configuration.
What are the stated pressure and temperature limits?
The supplied data lists up to 20 kg/cm² and up to 200°C, depending on product type. Exact ratings must be confirmed.
What is a Tri-Clover sight glass connection?
A Tri-Clover-style connection refers to a sanitary clamp-style piping connection. Confirm the exact clamp dimensions, seal material and product availability.
Are threaded sight glass windows available?
The supplied general specifications include BSP and NPT screwed connections. Confirm the required product type and connection details before ordering.
Which industries use sight glass assemblies?
Sight glass assemblies are considered for compatible chemical, pharmaceutical, food processing, water treatment and industrial utility applications.
Can I request a sight glass quotation in Mumbai or India?
Yes. Contact Ultra Valves Automation Pvt. Ltd. with the required type, size, process medium, operating conditions and quantity.
Industrial Sight Glass Enquiries
Need a Window Sight Glass Quotation?
Share your required sight glass type, size, process medium, operating pressure, temperature, end connection and quantity with Ultra Valves Automation Pvt. Ltd.
