Sleeved Plug Valves Manufacturer & Supplier in Mumbai, India
Sleeved plug valves are quarter-turn valves designed for suitable industrial flow isolation duties. A sleeve positioned between the plug and valve body forms an important part of the sealing arrangement.
Ultra Valves Automation Pvt. Ltd. welcomes enquiries for sleeved plug valves from industrial buyers, engineering contractors and maintenance teams in Mumbai and across India.
Explore the available specifications, including 15 NB to 300 NB sizes, ANSI Class 150 / 300 / 600, PTFE / RPTFE / PFA sleeve options and manual or actuated operation.

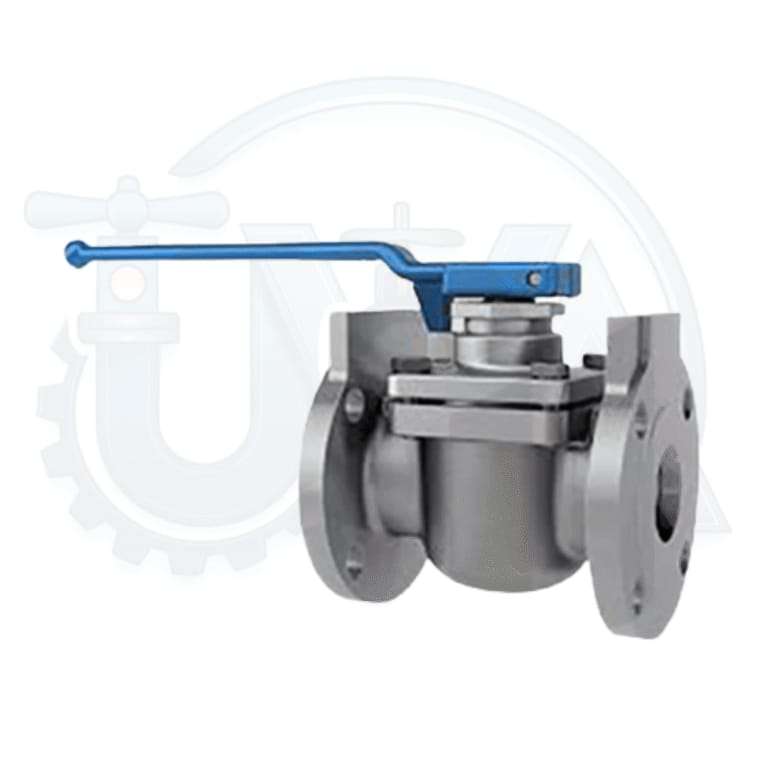

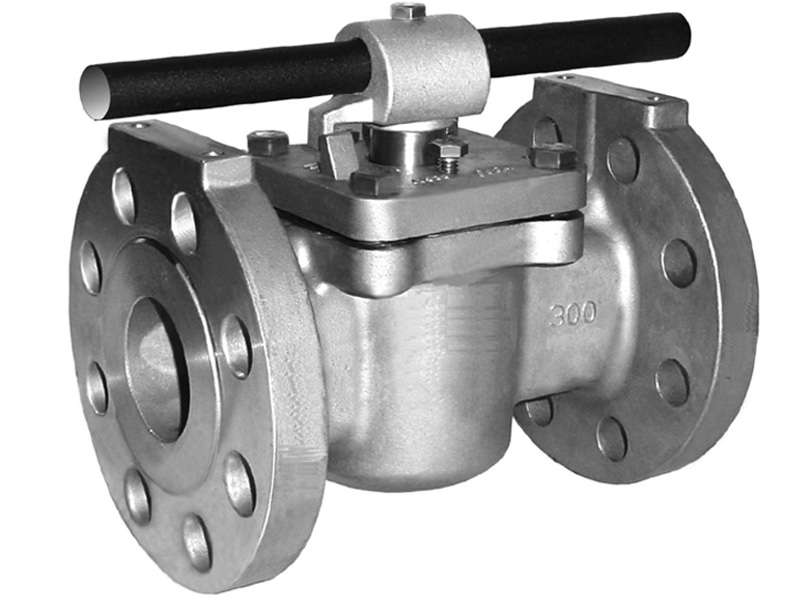

Industrial Sleeved Plug Valve
Industrial Sleeved Plug Valves for Reliable Flow Isolation
A sleeved plug valve uses a rotating plug and a specially designed sleeve to open or close the flow passage. The sleeve acts as a sealing interface between the plug and valve body.
These valves are considered for suitable process piping systems where compact quarter-turn operation and compatible sealing materials are important.
The supplied product range includes WCB, CF8, CF8M, SS304 and SS316 body materials, with PTFE, RPTFE and PFA sleeve options.
Buyers comparing sleeved plug valves manufacturer options should verify the process medium, operating temperature, pressure class, sleeve material and end connection before selection.
Product Highlights
- Quarter-turn plug valve design
- Size range: 15 NB to 300 NB
- ANSI Class 150 / 300 / 600
- WCB / CF8 / CF8M / SS304 / SS316
- PTFE / RPTFE / PFA sleeve materials
- Temperature range: -29°C to +200°C
- Flanged / Threaded / Butt Weld
- Lever or gear operation

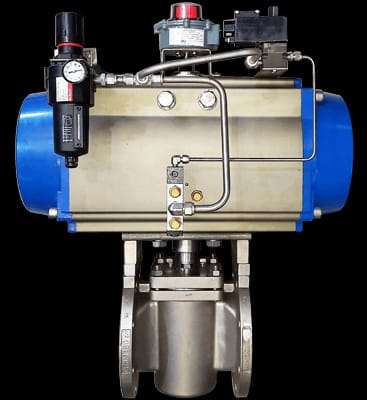

- Pneumatic or electric actuation
- API 599 / ASME B16.34 design
- API 598 testing
Sleeved Plug Valve Specifications
Review the technical details below to determine whether the listed construction matches your piping and process requirements.
| Parameter | Specification |
|---|---|
| Valve Type | Sleeved Plug Valve |
| Size Range | 15 NB to 300 NB (½″ to 12″) |
| Pressure Class | ANSI Class 150 / 300 / 600 |
| Body Material | WCB / CF8 / CF8M / SS304 / SS316 |
| Sleeve Material | PTFE / RPTFE / PFA |
| Temperature Range | -29°C to +200°C |
| End Connection | Flanged / Threaded / Butt Weld |
| Operation | Lever Operated / Gear Operated / Pneumatic Actuator / Electric Actuator |
| Design Standard | API 599 / ASME B16.34 |
| Testing Standard | API 598 |
Technical note: The stated temperature range and pressure classes are supplied product specifications. Suitability at a particular pressure and temperature must be confirmed for the selected sleeve, body material and valve configuration.
How Does a Sleeved Plug Valve Work?
The valve opens and closes through rotation of the plug, while the sleeve provides the sealing interface.
Open Position
The passage through the plug aligns with the pipeline, allowing the process medium to pass through.
Quarter-Turn Movement
The operating mechanism rotates the plug, changing the position of the internal passage.
Closed Position
The plug blocks the flow path, with the sleeve contributing to the required sealing performance.
Key Features of Sleeved Plug Valves
Sleeve-Based Sealing
The sleeve forms an important sealing interface between the plug and valve body.
Quarter-Turn Operation
A short rotational movement opens or closes the valve.
Multiple Sleeve Materials
PTFE, RPTFE and PFA options are listed for selection according to process requirements.
Industrial Body Materials
The supplied specifications include WCB, CF8, CF8M, SS304 and SS316.
Manual or Actuated Operation
Listed operation options include lever, gear, pneumatic actuator and electric actuator.
Connection Flexibility
Flanged, threaded and butt-weld connections are included in the supplied specifications.
Choosing the Right Sleeve and Body Material
The sleeve is one of the most important components in a sleeved plug valve. It influences sealing, chemical compatibility and operating characteristics.
PTFE, RPTFE and PFA are the listed sleeve options. Each material has different properties, and the correct choice depends on the process medium and operating conditions.
Body materials should also be reviewed. The supplied range includes WCB, CF8, CF8M, SS304 and SS316.
Before ordering, verify the compatibility of all wetted materials, pressure-temperature limits and any applicable project specifications.
Material Selection Checklist
- Process fluid composition
- Chemical compatibility
- Operating temperature
- Operating pressure
- Required sleeve material
- Required body material
- Expected operating frequency
- Sealing requirements
- Maintenance conditions
Where Sleeved Plug Valves Are Used
Application suitability depends on the valve's material compatibility and approved operating limits.
Chemical Processing
Suitable process isolation duties involving compatible fluids and materials.
Petrochemical Plants
Selected process piping applications where sleeve compatibility is confirmed.
Water Treatment
Suitable isolation duties in water and utility systems.
Industrial Manufacturing
Process fluid isolation in compatible manufacturing systems.
Process Engineering
Engineered piping applications with defined valve specifications.
Maintenance & Replacement
Replacement valve requirements where dimensions and operating limits match.
Sleeved Plug Valves Suppliers in Mumbai
Industrial buyers in Mumbai may require sleeved plug valves for compatible process isolation duties. Selection depends on the fluid, operating conditions and piping layout.
When comparing sleeved plug valves suppliers in Mumbai, check the pressure class, sleeve material, body construction, connection type and actuation requirements.
Buyers researching a sleeved plug valves manufacturer in Mumbai should request an approved technical datasheet and confirm that the proposed valve matches the application.
Ultra Valves Automation Pvt. Ltd. welcomes enquiries from engineering contractors, industrial plants and procurement teams in Mumbai.
Call for Technical Enquiry →Share These Details
- Required nominal size
- Pressure class
- Process medium
- Operating temperature
- Body material
- Sleeve material
- End connection
- Manual or actuated operation
- Required quantity
- Delivery location
Sleeved Plug Valves Suppliers in India
Sleeved plug valves are considered for industrial piping systems where suitable quarter-turn isolation and sleeve-based sealing are required.
Buyers comparing sleeved plug valves suppliers in India should review the valve's material compatibility, size, pressure class, temperature limits and end connections.
When researching a sleeved plug valves manufacturer in India, it is important to verify the approved technical datasheet, applicable standards and project-specific requirements.
Ultra Valves Automation Pvt. Ltd. welcomes technical enquiries from industrial buyers across India for sleeved plug valve requirements.
How to Select the Right Sleeved Plug Valve
A complete technical enquiry helps identify the most suitable valve configuration.
Identify the Process Conditions
Confirm the fluid, operating pressure, temperature and required isolation duty.
Select the Materials
Review the listed body and sleeve materials against fluid compatibility.
Check the Connections
Verify nominal size, pressure class, end connections and installation dimensions.
Confirm the Operation
Choose the appropriate lever, gear, pneumatic or electric operation based on project needs.
FAQs About Sleeved Plug Valves
Answers to common questions about sleeve materials, valve operation, technical specifications and industrial applications.
What is a sleeved plug valve?
A sleeved plug valve is a quarter-turn valve that uses a sleeve between the plug and body as part of its sealing arrangement.
How does a sleeved plug valve work?
The plug rotates to align or block its internal passage with the pipeline. The sleeve contributes to sealing performance.
What is the available size range?
The supplied specifications list sizes from 15 NB to 300 NB, equivalent to ½ inch to 12 inches.
What pressure classes are listed?
ANSI Class 150, 300 and 600 are listed. The actual allowable pressure depends on the selected construction and temperature.
Which sleeve materials are available?
PTFE, RPTFE and PFA are listed sleeve materials. Selection should consider fluid compatibility and operating conditions.
What body materials are listed?
WCB, CF8, CF8M, SS304 and SS316 are included in the supplied specifications.
Can sleeved plug valves be actuated?
Yes. The supplied operation options include pneumatic and electric actuators, along with lever and gear operation.
What is the listed temperature range?
The supplied range is -29°C to +200°C. Confirm suitability for the selected pressure class, sleeve and body material before use.
Which design and testing standards are listed?
API 599 and ASME B16.34 are listed as design standards, with API 598 specified for testing.
Can I request a quotation for Mumbai or another city in India?
Yes. Ultra Valves Automation Pvt. Ltd. welcomes sleeved plug valve enquiries from industrial buyers in Mumbai and across India.
Need a Sleeved Plug Valve Quotation?
Contact Ultra Valves Automation Pvt. Ltd. with your required valve size, pressure class, body and sleeve materials, operating conditions and quantity.
