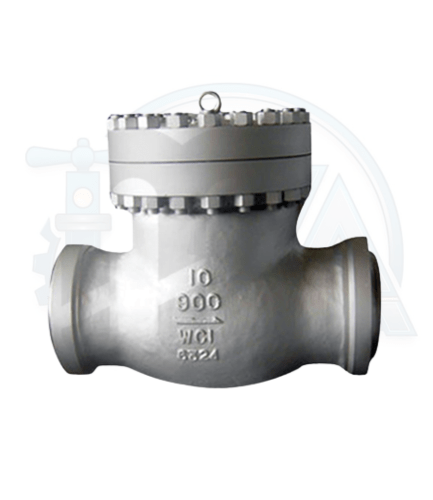

Swing Type Check Valve Manufacturer in Mumbai
A swing type check valve helps prevent reverse flow in industrial piping systems. Its hinged disc opens with forward flow and returns toward the seat when the flow slows down or reverses.
Ultra Valves Automation Pvt. Ltd. offers industrial swing check valve options for buyers in Mumbai and across India. Explore the construction materials, end connections and technical specifications to find a suitable valve for your application.
Reliable Reverse Flow Protection for Industrial Pipelines
A swing type check valve is a self-acting non-return valve designed to permit flow in one direction. When the fluid moves forward, pressure lifts the hinged disc. If the flow reverses, the disc moves back toward its seat.
This design is commonly considered for pipelines carrying water, oil and other compatible process fluids. The exact valve configuration depends on pressure, temperature, material compatibility and installation conditions.
An industrial swing check valve is often chosen where a straightforward non-return mechanism is needed. However, the valve must be selected with attention to flow velocity and potential pressure surges.
Product Highlights
- Hinged swing-disc closure mechanism
- Automatic reverse flow restriction
- BS 1868 / API 6D design standards listed
- BS EN 12266-1 testing standard
- ASME B16.10 face-to-face dimensions
- Flanged and butt weld connection options
- ASME B16.34 pressure-temperature ratings
- Carbon steel, alloy steel and stainless steel material options
- Industrial enquiries across Mumbai and India
Features of Swing Type Check Valves
The construction and working principle of swing check valves make them suitable for selected industrial flow control applications.
Automatic Operation
A conventional swing check valve opens and closes in response to fluid flow and pressure differences.
Reverse Flow Restriction
The hinged disc moves toward its seat when forward flow decreases or reverses.
Material Selection
Multiple shell and trim material options are listed for different industrial duties.
Connection Flexibility
Flanged and butt weld end connections are included in the supplied specifications.
Industrial Standards
Design, testing and dimensional standards are listed to support technical evaluation.
Application Suitability
Suitable configurations may be selected for industrial water, utility and process lines.
Swing Type Check Valve Technical Specifications
The following specifications are based on the supplied product information. Confirm the exact valve configuration and applicable ratings before placing an order.
| Parameter | Technical Specification |
|---|---|
| Design Standard | BS 1868 / API 6D |
| Testing Standard | BS EN 12266-1 |
| Face to Face | ASME B16.10 |
| End Connection |
Flanged End – ASME B16.5 Butt Weld End – ASME B16.25 |
| Pressure–Temperature Chart | ASME B16.34 |
| Structure | Flanged End Raised Face / Butt Weld End / RTJ / etc. |
| Operation | Hand Wheel / Gear Operator / Electrical Actuator / Pneumatic / Hydraulic |
| Shell Material | WCB / WC1 / WC6 / WC9 / LCB / LCC / LC3 / C5 / C12 / CF8 / CF8M / CF3 / CF3M / CF8C / CN7M / CD4MCu / Hastelloy / Inconel / Duplex Stainless Steel |
| Trim Material | 13% Cr Steel / 304 / 304L / 316 / 316L / 321 / 347 / F51 / Monel |
Important: The operation options above reproduce your supplied data. Standard swing check valves are self-acting and do not normally use handwheels, gear operators or external actuators. Confirm whether those options apply to a special configuration or belong to another product category.
Stainless Steel Swing Check Valve and Alloy Steel Options
Material selection is important when choosing a swing check valve for a specific process application. The supplied specification includes carbon steel, alloy steel, stainless steel and other material options.
A stainless steel swing check valve may be considered for suitable applications where corrosion resistance is required. The exact grade must be chosen according to the process medium and operating conditions.
Buyers searching for a stainless swing check valve should check the shell and trim material grades, pressure class and temperature requirements.
Material Selection Checklist
- Process medium
- Operating temperature
- Operating pressure
- Corrosion requirements
- Shell material
- Trim material
- End connection type
- Applicable standards
How Does a Swing Type Check Valve Work?
A conventional swing check valve operates automatically according to flow direction and pressure conditions.
Forward Flow Opens the Disc
Sufficient forward flow pushes the hinged disc away from its seat, allowing fluid to pass through.
The Disc Remains Open
The disc stays open while flow conditions provide enough force to hold it in position.
Reverse Flow Closes the Disc
When forward flow decreases or reverses, the disc returns toward its seat to restrict backflow.
Flanged and Butt Weld Swing Check Valve Options
The end connection should match the piping design, pressure class and installation requirements.
Flanged End
Flanged connections are listed to ASME B16.5. The supplied structure options also mention raised-face and RTJ arrangements.
Confirm flange class, dimensions, gasket requirements and bolting before installation.
Butt Weld End
Butt weld ends are listed to ASME B16.25. These connections should be matched to the piping material and welding requirements.
Check weld preparation, pipe schedule, installation space and inspection requirements.
Pressure Seal Swing Check Valve for Demanding Applications
A pressure seal swing check valve uses a hinged swing-disc mechanism along with a pressure seal bonnet construction.
This configuration is different from conventional bolted bonnet swing check valves and is generally considered for selected high-pressure applications.
Ultra Valves Automation Pvt. Ltd. also has a dedicated product page for pressure seal check valves. Review that product's specifications separately before selecting a configuration.
Pressure Seal Check Valve
Explore the related high-pressure check valve product category.
View Product Details →Swing Type Check Valve Supplier in Mumbai
Industrial plants, engineering contractors and maintenance teams in Mumbai often require non-return valves for compatible utility and process piping systems.
Ultra Valves Automation Pvt. Ltd. welcomes enquiries from buyers searching for a swing type check valve manufacturer in Mumbai.
If you need a swing type check valve supplier in Mumbai, share your required valve size, pressure class, shell material, trim material and end connection.
Discuss Your Requirement →Details Required for a Quotation
- Nominal valve size
- Pressure class
- Process medium
- Operating pressure
- Operating temperature
- Shell and trim material
- End connection type
- Installation orientation
- Required standards
- Quantity and delivery location
Swing Type Check Valve Supplier in India
Swing check valves are used in many industrial piping applications where the selected valve must restrict reverse flow under the required operating conditions.
Buyers comparing swing type check valve manufacturers in India should review the valve design, material options, pressure class, end connections, testing requirements and technical drawings.
Ultra Valves Automation Pvt. Ltd. welcomes industrial enquiries from Mumbai and across India. Buyers can discuss their project specifications and request details for the appropriate valve configuration.
When selecting a swing type check valve supplier in India, it is important to check application suitability and technical requirements rather than relying on valve size alone.
Applications of Industrial Swing Check Valves
Swing check valves may be selected for different industrial services when the chosen model meets the required operating conditions.
Water Treatment
Compatible water pumping and distribution applications.
Oil & Gas
Selected process and utility piping systems.
Power Generation
Suitable plant utility and process piping.
Chemical Processing
Reverse flow restriction where materials are compatible with the process fluid.
Industrial Pumping
Pump discharge lines where the selected check valve suits the system.
Process Plants
General industrial lines requiring suitable non-return valve arrangements.
How to Choose the Right Swing Type Check Valve
A suitable valve should be selected according to the actual operating conditions and pipeline arrangement.
Review Flow Conditions
Check flow rate, pressure drop, fluid characteristics and potential pressure surges.
Select Materials & Connections
Choose compatible shell and trim materials along with the required end connections.
Verify Technical Requirements
Confirm design standards, dimensions, pressure ratings, testing and installation instructions.
FAQs About Swing Type Check Valves
Answers to common questions about construction, working principles, materials and industrial applications.
What is a swing type check valve?
A swing type check valve is a non-return valve that uses a hinged disc to allow forward flow while restricting reverse flow.
How does a swing check valve work?
Forward flow pushes the disc open. When the flow decreases or reverses, the disc moves back toward its seat.
What is a stainless steel swing check valve?
A stainless steel swing check valve uses a stainless steel body or other specified stainless components. Material selection depends on the process medium and operating conditions.
What is the difference between a swing check valve and a dual plate check valve?
A swing check valve normally uses a single hinged disc, while a dual plate check valve uses two moving plates. Their installation and flow characteristics differ by design.
What is a pressure seal swing check valve?
It is a swing check valve with a pressure seal bonnet arrangement, generally considered for selected high-pressure applications.
Which standards are listed for swing check valves?
The supplied specification lists BS 1868 / API 6D for design, BS EN 12266-1 for testing, ASME B16.10 for dimensions and ASME B16.34 for pressure-temperature ratings.
Can swing check valves be installed vertically?
Some swing check valves can be installed in vertical pipelines with upward flow. Confirm the approved installation orientation with the manufacturer.
Are swing check valves manually operated?
Conventional swing check valves operate automatically in response to flow. Handwheel and actuator options listed in the supplied data should be confirmed for the exact model.
How do I choose a swing type check valve manufacturer in Mumbai?
Compare product materials, pressure ratings, end connections, applicable standards and technical documentation before selecting a manufacturer or supplier.
Can I enquire about swing type check valves across India?
Yes. Ultra Valves Automation Pvt. Ltd. welcomes industrial enquiries from Mumbai and across India. Share your valve specifications, quantity and delivery location.
Need a Swing Type Check Valve Quote?
Contact Ultra Valves Automation Pvt. Ltd. with your required valve specifications for product and quotation enquiries.
